CRS326-24S+2Q+RM

536.97 ex. VAT | 639.00 inc. VAT

Availability: In Stock

SKU: CRS326-24S+2Q+RM.
Brand:

Product Description

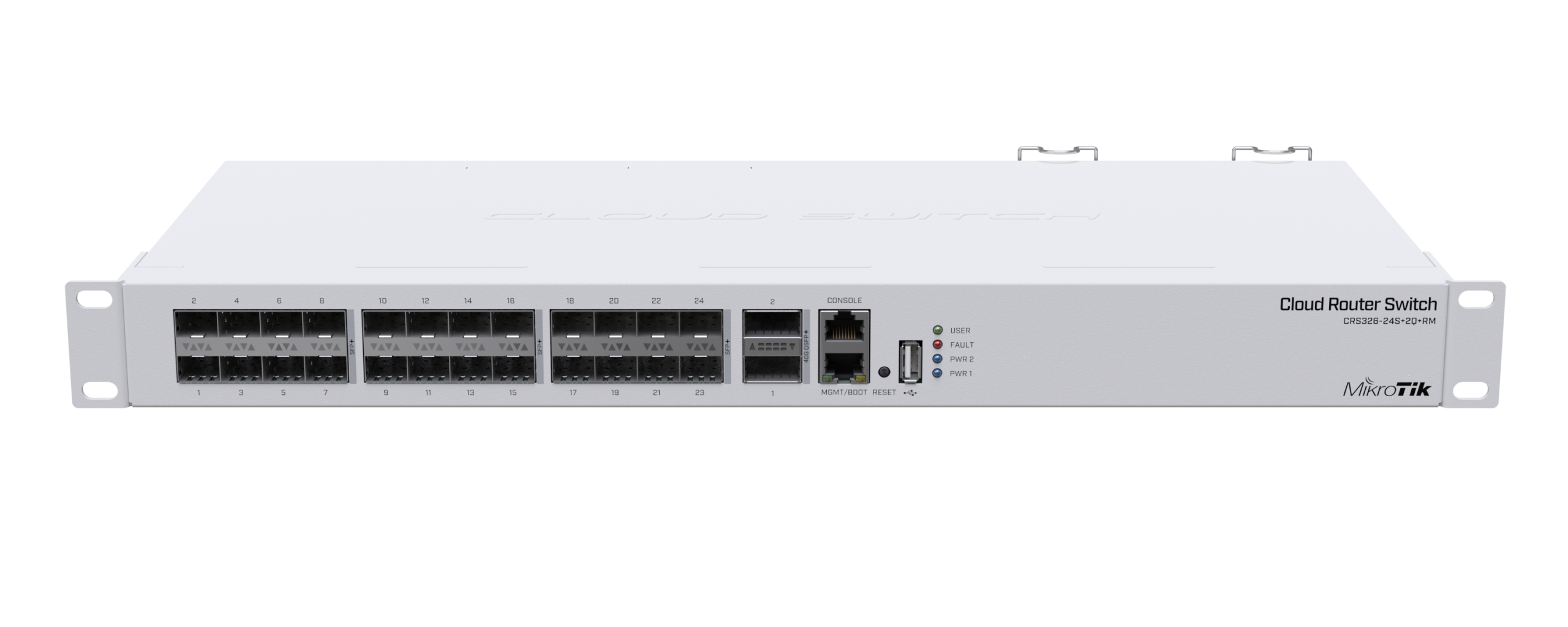

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS







Specifications

Details

Product code CRS326-24S+2Q+RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 443 x 200 x 44 mm
RouterOS license 5
Operating System RouterOS or SwitchOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
Suggested price $599.00

Powering

Details

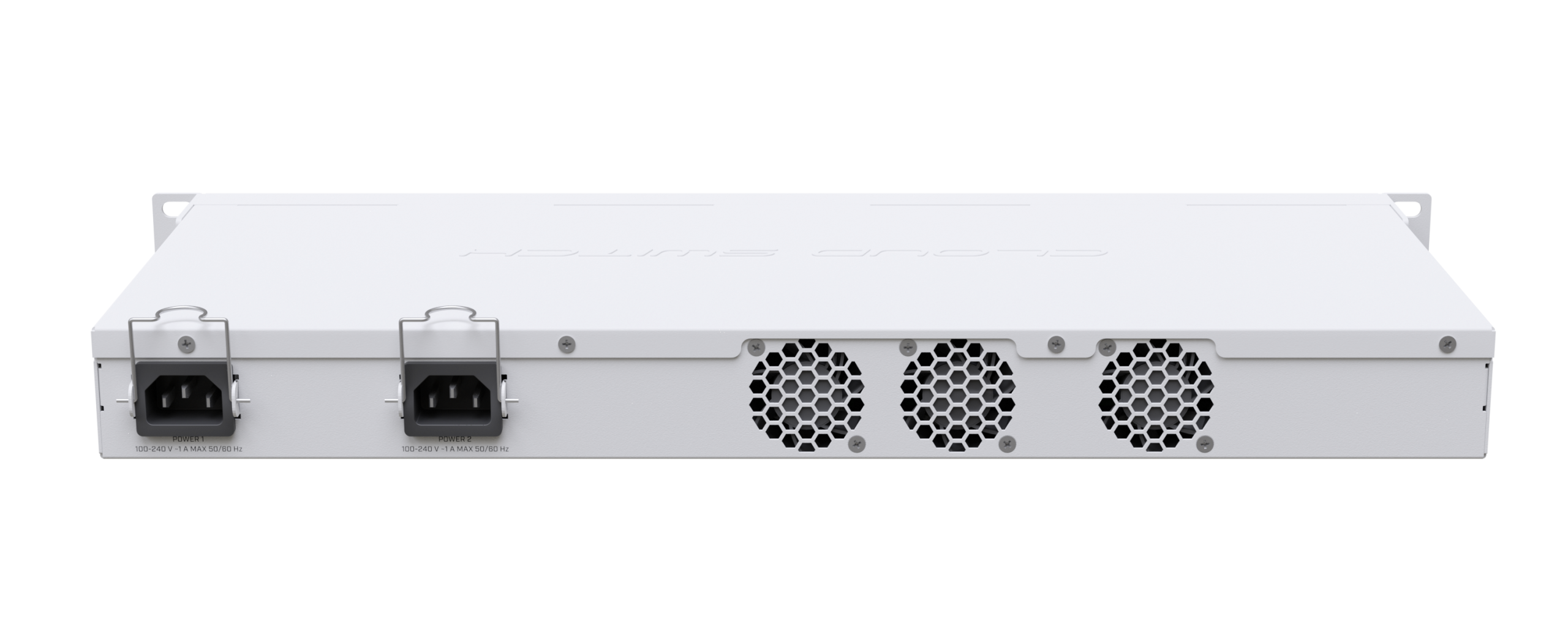

Number of AC inputs 2
AC input range 100-240
Max power consumption 69 W
Max power consumption without attachments 42 W
Cooling type 3 fans

Ethernet

Details

10/100 Ethernet ports 1

Fiber

Details

SFP+ ports 24
Number of 40G QSFP+ ports 2

Peripherals

Details

Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Certification & Approvals

Details

Certification CE, EAC, ROHS
IP IP20
