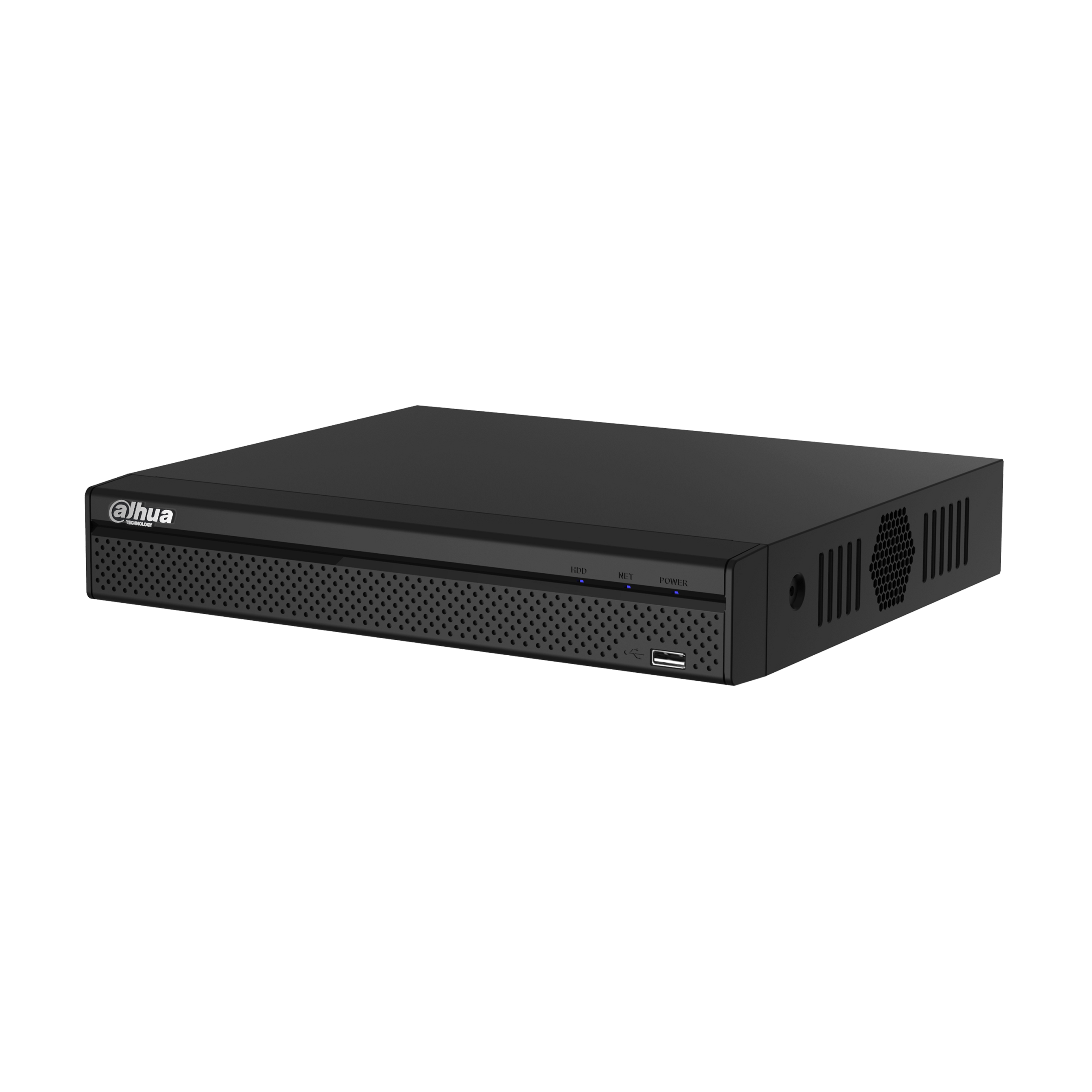

Dahua XVR 4K 4channels H265+ XVR5104HS-4KL-I3

• H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 6 channels IP camera inputs, each channel up to 8MP; Max 24Mbps Incoming Bandwidth
• Smart Search and Intelligent Video System







System

• Main Processor : Embedded Processor
• Operating System : Embedded LINUX





Video and Audio

• Analog Camera Input : 4 Channel, BNC
• HDCVI Camera : 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD Camera : 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
• TVI Camera : 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera : PAL/NTSC
• IP Camera Input : 4+2 Channel, each channel up to 8MP
• Audio In/Out : 1/1, RCA
• Two-way Talk : Reuse audio in/out, RCA





Recording

• Compression : H.265+/H.265/H.264+/H.264
• Resolution : 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
• Record Rate : Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps); / 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps) / Sub stream:960H(1~15fps); / D1/CIF(1~25/30fps)
• Bit Rate : 32Kbps ~ 6144Kbps Per Channel
• Record Mode : Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval : 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
• Audio Compression : AAC(only for the 1st channel), G.711A, G.711U, PCM
• Audio Sample Rate : 8KHz, 16 bit Per Channel
• Audio Bit Rate : 64Kbps Per Channel





Display

• Interface : 1 HDMI, 1 VGA
• Resolution : HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 / VGA: 1920×1080, 1280×1024, 1280×720
• Multi-screen Display : When IP extension mode not enabled: 1/4 / When IP extension mode enabled: 1/4/6
• OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording





Network

• Interface : 1 RJ-45 Port (100M)
• Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
• Max. User Access : 128 users
• Smart Phone : iPhone, iPad, Android
• Interoperability : ONVIF 16.12, CGI Conformant





Video Detection and Alarm

• Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
• Alarm input : N/A
• Relay Output : N/A





Playback and Backup

• Playback : 1/4
• Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode : USB Device/Network





Storage

• Internal HDD : 1 SATA Port, up to 10TB capacity
• eSATA : N/A
• Auxiliary Interface
• USB : 2 USB Ports (2 USB 2.0)
• RS232 : N/A
• RS485 : 1 Port, for PTZ Control





Electrical

• Power Supply : DC12V/2A
• Power Consumption (without HDD) : <10W





Construction

• Dimensions : Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
• Device with PFH101 Rack Mount Tray : 483mmx281mmx56mm (19.0″x11.1″x2.2″)
• Net Weight (without HDD) : 0.9kg ( 2.0lb)
• Gross Weight : 1.6kg (3.5 lb)
• Installation : Desktop installation





Environmental

• Operating Conditions : -10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH
• Storage Conditions : -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH





Third-party Support

• Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more





Certifications

• FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
• UL: UL 60950-1
